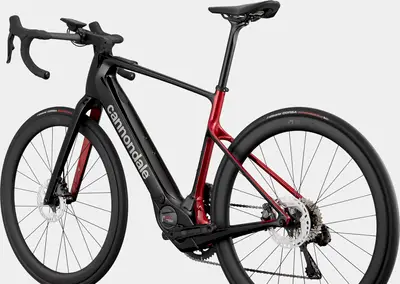

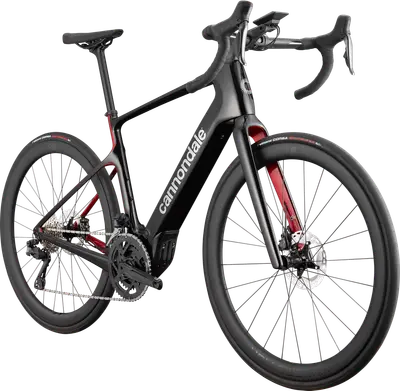

2024 Cannondale
Synapse Neo
A carbon frame endurance e-bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$8,500| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 2 × 12 Electronic |
| Groupset | Ultegra Di2, FSA |
| Motor | Bosch 600W 63Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Synapse Neo model range
View Comparison5'2" – 5'6"
5'5" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'2" – 6'9"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024 · Jordan Villella
The Cannondale Synapse Neo brings high-performance road endurance to the e-bike crowd and hopes to channel acoustic Synapse energy
Apr 2024 · Alvin Holbrook
The latest Cannondale Synapse Neo road e-bike receives a lightweight Bosch Class 3 motor and a carbon frame derived from the Synapse.
| Frame | Synapse Neo Carbon, Series 2 Carbon construction, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, Pletscher kickstand mount (30mm) BB Standard: Bosch, Press Fit Tire Clearance: 45c Color: Black |
|---|---|
| Fork | Synapse Neo Carbon, Series 2 Carbon construction, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle |
| Bottom Bracket | Bosch, press-fit |
| Headset | Integrated, 1-1/8" - 1.5" |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Handlebar | Vision Metron Aero |
| Saddle | Fizik Tempo Argo R5, 150mm width, S-alloy rails |
| Seatpost | Cannondale 1, SAVE, UD Carbon, 25.4x350mm (XS-S), 400mm (M-XL) Type: Rigid |
| Pedals | Not Included |
| Grips | Fabric Knurl tape, 3mm |

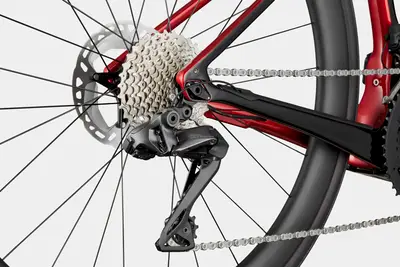

| Rear Derailleur | Shimano Ultegra Di2 R8150, 12-speed |
|---|---|
| Front Derailleur | Shimano Ultegra Di2 8150, braze-on |
| Crank | FSA Bosch E-Bike, 50/34 |
| Shifters | Shimano Ultegra Di2 8150, 12-speed |
| Cassette | Shimano Ultegra, 11-34, 12-speed |
| Chain | Shimano Ultegra, 12-speed |
| Brakes | Shimano Ultegra Di2 hydraulic disc, 160/160mm MT800 rotors Type: Hydraulic Disc |
| Brake Levers | Shimano Ultegra Di2 hydraulic disc |
| Rims | HollowGram R 45, Carbon, 24h front, 28h rear, 50mm deep, 21mm inner width, tubeless ready |
|---|---|
| Spokes | Stainless Steel, 14g |
| Front Hub | (F) HollowGram, sealed bearing 12x110mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x148mm centerlock |
| Rear Hub | (F) HollowGram, sealed bearing 12x110mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x148mm centerlock |
| Tires | Vittoria Corsa, 700x30c |
| Motor | Bosch Performance Line Sprint, 28mph |
|---|---|
| Battery | Bosch Compact Powertube 400Wh Recycling Program: ♻️ Call2Recycle |
| Display | Bosch Kiox 500 |
| Charger | Bosch 2A |
Last updated May 11
