2023 NS

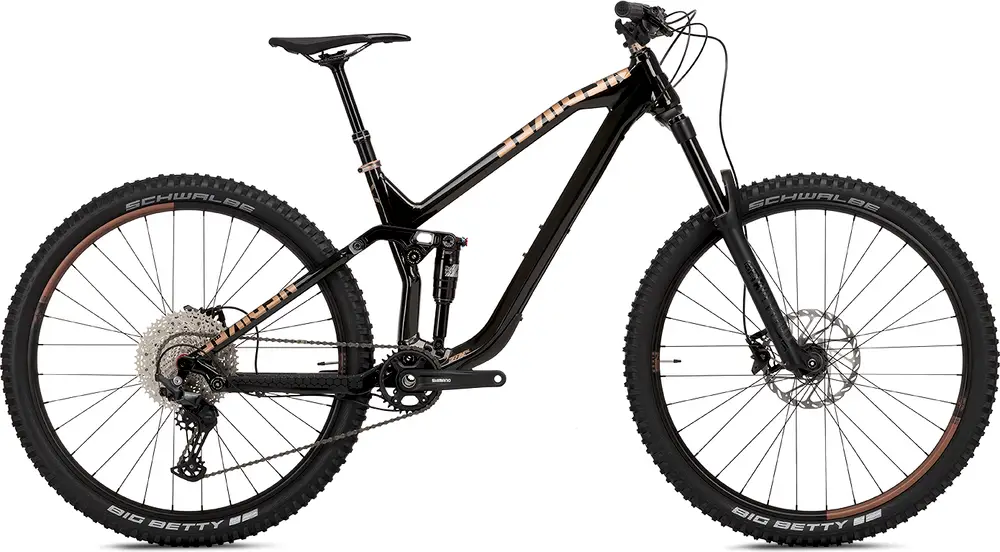

Define AL 150 2
A 29″ aluminum frame full suspension enduro bike with upper mid-range components.
Compare the full range
| Weight | 35.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 150 / 160mm |
| Fork | RockShox 35 Gold RL |
| Shock | RockShox Deluxe Select+ |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
Apr 2021 · NS Bikes
We selfishly made the Define 170 for the riding we most enjoy. It is perfect for big jumps and severe terrain, and it is happy on the uphills, too. It is the most aggressive bike in the Define range, but one that is still fun to ride everywhere. Enduro, freeride, bike park ripper, call it what you like – at NS, a company of riders, we have fallen in love with this beast.
Nov 2020 · Paul Burwell
The NS Bikes Define AL 150 range shares the same frame as its AL 130 stablemate - what difference will the extra travel make on the trails?
Sep 2020
To begin with, was there ever really any doubt from the brand who originally put themselves on the map for creating amazing dirt jump hardtails that their latest enduro rig wasn’t going to be one of the most playful bikes of 2020? That’s pretty much it in a ‘nutshell’ really! NS’s range of longer travel bikes haven’t been available over here in Oz for very long now, but they have been knocking out awesome bikes based off of their DJ/freeride roots […]
Jul 2020
NS Bikes redefines their adaptable all-mountain trail to enduro 29er mountain bike platform with a new Define AL, with more travel & Mullet wheel options...
May 2020 · Robin Weaver
The Define 150 AL is packed full of promise and has great geometry. It’s not quite as comfy as some and the spec does fall a little short in places
Great geometry
Confident feel to the rear suspension
Functional spec that’ll do the job
Niggling issues with some elements of the spec
Not the comfiest ride on really rough descents
| Frame | NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Rock Shox 35 Gold RL 160mm travel, 15x110mm Boost, 1.5 tapered steerer tube Travel: 160mm Spring Type: Air |
| Shock | Rock Shox Deluxe Select+ Trunnion 205x62,5 Travel: 150mm Spring Type: Air |
| Bottom Bracket | Shimano BSA 73mm |
| Headset | integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Tone 35, 45mm |
| Handlebar | NS Bar 35, 800mm, 20mm rise |
| Saddle | WTB Volt Medium Steel SL |
| Seatpost | Kind shox rage i internal S-125, M-150, L-170mm, 31,6mm Type: Rigid |
| Pedals | / |
| Grips | NS Hold Fast |
| Crank | Shimano Deore FC-MT5101 170mm 32t |
|---|---|
| Shifters | Shimano Deore M6100, 12spd |
| Cassette | Sunrace CSMZ800, 12spd 11-51T |
| Chain | Shimano, 12 spd |
| Chain Guide | / |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Rims | Octane One Solar 29”, tubeless compatible |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS 110x15mm Boost (sealed bearings) |
| Rear Hub | NS 148x12mm Boost (sealed bearings) |
| Tires | Schwalbe Big Betty BikePark 29x2.4" |
Last updated May 18
