2024 Canyon
Neuron:ONfly CF 8

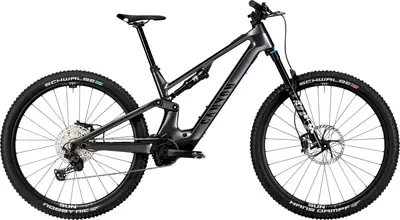

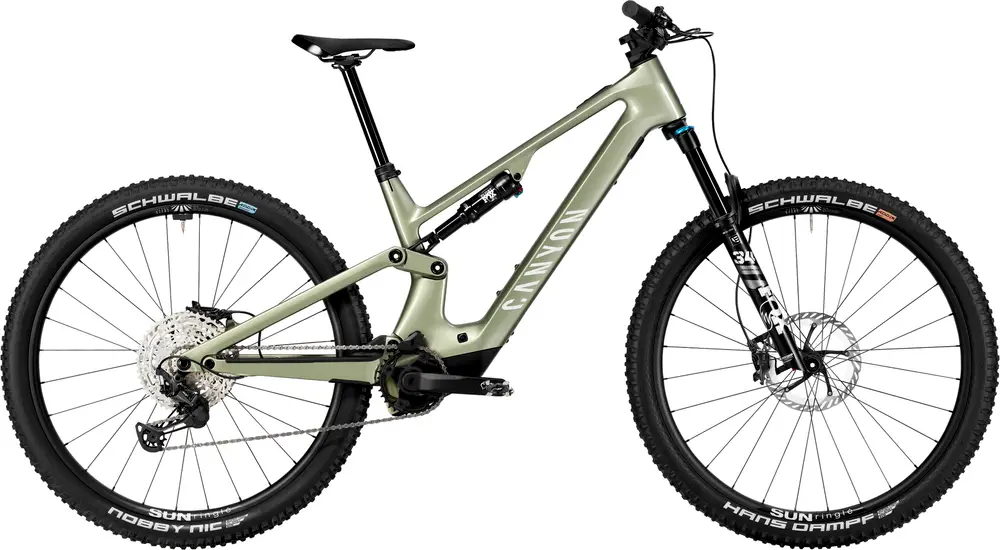

A 29″ carbon frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€5,599($6,152)| Weight | 43.2 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 140 / 140mm |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Deore |
| Motor | Bosch 600W 55Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Neuron:ONfly model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024 · Cory Benson
Canyon Neuron:ONfly is their 1st lightweight eMTB. A retuned 140mm travel 29er trail ebike, now 3kg lighter powered by a Bosch SX motor!
Apr 2024 · Tom Law
Does Canyon’s Neuron:ONfly give a glimpse of the future of electric bikes?
Bosch s sx motor is impressive
Mostly well chosen kit
Confidence inspiring geometry
Great value compared to the competition
Motor freewheel rattles noisily
Deserves grippier rubber
Suspension needs careful tuning
Apr 2024 · Jessie-May Morgan
So, while the reach increases by 24% from XS to XL, the rear-center length remains the same, something that will give bikes at opposite ends of the range a meaningful difference in front-to-rear balance.
| Frame | Canyon Neuron:ONfly CF, Lightweight, sleek, playful e-MTB with a capable, confidence-inspiring geometry. With Bosch SX power and perfectly downtube-integrated 400 Wh battery., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: Bosch, Press Fit Hanger Standard: UDH Colors: Space Grey; Utopian Green |
|---|---|
| Fork | FOX 34 Performance, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm Travel: 140mm Spring Type: Air |
| Shock | Fox DPS Performance, Weight: 330 g Travel: 140mm Spring Type: Air |
| Bottom Bracket | Bosch, press-fit |
| Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm |
| Handlebar | Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm |
| Saddle | Fizik Terra Alpaca X5, Weight: 230 g |
| Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 680 g Type: Dropper |
| Grips | Canyon Lock-On |
| Rear Derailleur | Shimano DEORE XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank | FSA CK-745 170mm |
| Shifters | Shimano Deore M6100, Weight: 136 g |
| Cassette | Shimano Deore M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51 |
| Chain | Shimano CN-M8100 12s | Shimano CN-M8100 12-speed Chain 138 Links |
| Chain Guide | Canyon GP0480-01 Chain Guide |
| Brakes | Shimano DEORE XT M8120 Type: Hydraulic Disc |
| Rims | Sunringle 329 Trail Expert, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 940 g | Sunringle 329 Trail Expert, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 1.05 kg |
|---|---|
| Tires | Schwalbe Hans Dampf, Width: 60mm, Weight: 1.05 kg | Schwalbe Nobby Nic, Wheelsize: 29" | Schwalbe Hans Dampf Super Trail TLE E25 29" MTB Tyre |
| Disc Rotors | Shimano RT-CL800 |
| Motor | Bosch Performance Line SX |
|---|---|
| Battery | Bosch Compact Tube 400WH |
Last updated May 18
