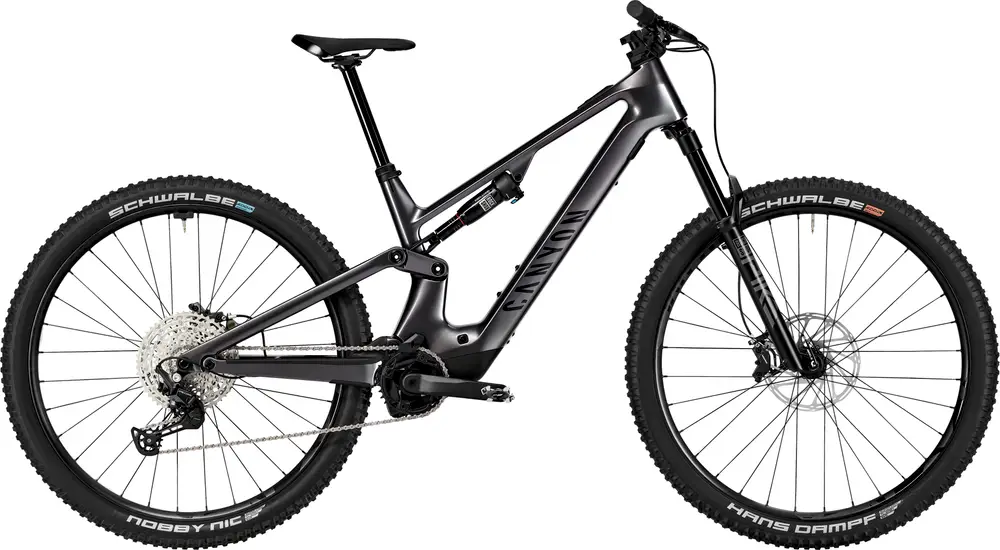

Neuron:ONfly CF 7
A 29″ carbon frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
$5,499Weight | 44.8 lbs |
---|---|
Frame | Carbon |
Suspension | Full, 140 / 140mm |
Fork | RockShox Pike |
Shock | RockShox Deluxe Select+ |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | Deore, FSA |
Motor | Bosch 600W 55Nm mid-drive |
Battery | 400Wh |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Neuron:ONfly model range
View Comparison< 5'6"
5'4" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2024 · Tom Law
Does Canyon’s Neuron:ONfly give a glimpse of the future of electric bikes?
Bosch s sx motor is impressive
Mostly well chosen kit
Confidence inspiring geometry
Great value compared to the competition
Motor freewheel rattles noisily
Deserves grippier rubber
Suspension needs careful tuning
Apr 2024 · Cory Benson
Canyon Neuron:ONfly is their 1st lightweight eMTB. A retuned 140mm travel 29er trail ebike, now 3kg lighter powered by a Bosch SX motor!
Apr 2024 · Jessie-May Morgan
So, while the reach increases by 24% from XS to XL, the rear-center length remains the same, something that will give bikes at opposite ends of the range a meaningful difference in front-to-rear balance.

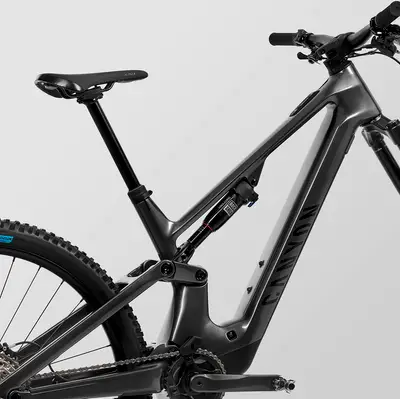

Frame | Canyon Neuron:ONfly CF, Lightweight, sleek, playful e-MTB with a capable, confidence-inspiring geometry. With Bosch SX power and perfectly downtube-integrated 400 Wh battery., Axle dimension: 12x148 mm, Material: Carbon (CF) BB Standard: Bosch, Press Fit Hanger Standard: UDH Color: Space Grey |
---|---|
Fork | RockShox Pike, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 5.16 lbs Travel: 140mm Spring Type: Air |
Shock | RockShox Deluxe Select +, Weight: 0.75 lbs Travel: 140mm Spring Type: Air |
Bottom Bracket | Bosch, press-fit |
Stem | Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm |
Handlebar | Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm |
Saddle | Fizik Terra Alpaca X5, Weight: 0.51 lbs |
Seatpost | Canyon SP0070-01, Air cartridge. Cable actuated., Travel: Dependent on frame size (see component geometry table.), Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.50 lbs Type: Dropper |
Grips | Canyon Lock-On |
Rear Derailleur | Shimano Deore M6100, Cage length: long, Weight: 0.70 lbs |
---|---|
Crank | FSA CK-745 170mm |
Shifters | Shimano Deore M6100, Weight: 0.30 lbs |
Cassette | Shimano Deore M6100, Number of sprockets: 12 |
Chain | Shimano CN-M6100 |
Chain Guide | Canyon GP0480-01 Chain Guide |
Brakes | SRAM Matchmaker Clamp | SRAM Code R | SRAM Code R Type: Hydraulic Disc |
Rims | RODI TRYP30 EVO, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Weight: 2.40 lbs | RODI TRYP30 EVO, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Weight: 2.62 lbs |
---|---|
Tires | Schwalbe Hans Dampf, Width: 60mm, Weight: 2.31 lbs | Schwalbe Nobby Nic, Wheelsize: 29" |
Disc Rotors | SRAM Centerline Rounded, Size: 200 mm, Weight: 0.50 lbs |
Motor | Bosch Performance Line SX |
---|---|
Battery | CompactTube 400 |
Last updated May 18
